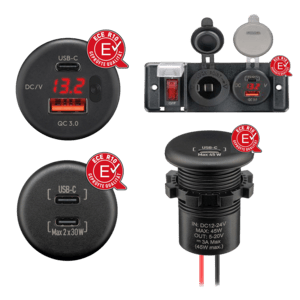

RAM Mounts USB Built-In Charger 560025

RAM Mounts USB Built-In Charger 560025

Dual USB Panel Install Charger with bare wires, 2x 30W, cable length 200 mm - USB-C / USB-C

SKU: 560025
Sold out
£14.00
with VAT £16.94
Incoming units, available for purchase
1-Year On-Site Support

Notify me when back in stock

Request a quote for volumn pricing

Dual USB Panel Install Charger with bare wires, cable length 200 mm - USB-C / -CThis universal unit charges all mobil devices like Smartphones, Tablets, Digital Cameras, Headphones or mobile Loudspeakers.Features:With USB-C® connection for fast and simple charging.Charges 25 % faster than previous model with 2 x 18 W.Simple to install and compatibel with switch programs from Berker and Inprojal.Suitable for wall thickness up to 17 mm.bare wires - 200 mm cable length.Techical Data:Output - 2x 30 WPower in Stand-by-Mode - ? 2 mAInput rated voltage - 12?24 VMeasures - 36 mm front diameter, 27 mm install diameter, 44,2 mm depthWeight - approx. 29 gOperating temperature -20 °C to +70 °CStorage temperature -40 °C to +90 °CCompatible with all established Smartphones, Tablets und other USB devicesStandards - CE, UKCACertificate - EMV (EN 55032:2015 / EN 55035:2017 / EN 50498:2011)Quality requirements - RoHS, REACH, ECE-R10 Type Approval, Head-on crash test (FMVSS 201), Inflammability housing (EN 60695-11-10, UL 94 V-0)Connection and Fast Charging Technology:USB-C®Total output per port with 12 V input voltage - 5,0 V max. 3,0 A (15W) / 9,0 V max. 3,0 A (27 W) / 12,0 V max. 2,5 A (30 W)Total output per port with 24 V input voltage - 5,0 V max. 3,0 A (15W) / 9,0 V max. 3,0 A (27 W) / 12,0 V max. 2,5 A (30 W) / 15,0 V max. 2,0 A (30 W) / 20,0 V max. 1,5 A (30 W)Fast Charging Technology - PD 3.0 / PPS / QC 4+ / QC 4.0 / QC 3.0 / QC 2.0 / FCP / DCP / BC 1.2 / AFC / PE 1.1 / SCP / SFCPLifetime in plug-in and plug-out cycles - approx. 10.000
Chat with an expert

Payment methods

  • Visa
  • Mastercard
  • PayPal
  • Amex
  • Bizum

Shipping methods

  • UPS
  • InPost
  • FedEx
  • DHL
  • Schenker
  • Kuehne Nagel
  • Raben
  • MRW
  • Tipsa

Description
Dual USB Panel Install Charger with bare wires, cable length 200 mm - USB-C / -CThis universal unit charges all mobil devices like Smartphones, Tablets, Digital Cameras, Headphones or mobile Loudspeakers.Features:With USB-C® connection for fast and simple charging.Charges 25 % faster than previous model with 2 x 18 W.Simple to install and compatibel with switch programs from Berker and Inprojal.Suitable for wall thickness up to 17 mm.bare wires - 200 mm cable length.Techical Data:Output - 2x 30 WPower in Stand-by-Mode - ? 2 mAInput rated voltage - 12?24 VMeasures - 36 mm front diameter, 27 mm install diameter, 44,2 mm depthWeight - approx. 29 gOperating temperature -20 °C to +70 °CStorage temperature -40 °C to +90 °CCompatible with all established Smartphones, Tablets und other USB devicesStandards - CE, UKCACertificate - EMV (EN 55032:2015 / EN 55035:2017 / EN 50498:2011)Quality requirements - RoHS, REACH, ECE-R10 Type Approval, Head-on crash test (FMVSS 201), Inflammability housing (EN 60695-11-10, UL 94 V-0)Connection and Fast Charging Technology:USB-C®Total output per port with 12 V input voltage - 5,0 V max. 3,0 A (15W) / 9,0 V max. 3,0 A (27 W) / 12,0 V max. 2,5 A (30 W)Total output per port with 24 V input voltage - 5,0 V max. 3,0 A (15W) / 9,0 V max. 3,0 A (27 W) / 12,0 V max. 2,5 A (30 W) / 15,0 V max. 2,0 A (30 W) / 20,0 V max. 1,5 A (30 W)Fast Charging Technology - PD 3.0 / PPS / QC 4+ / QC 4.0 / QC 3.0 / QC 2.0 / FCP / DCP / BC 1.2 / AFC / PE 1.1 / SCP / SFCPLifetime in plug-in and plug-out cycles - approx. 10.000

Detailed Specs

Technical information RAM MOUNTS USB BUILT-IN CHARGER 560025

  • Manufacturer RAM MOUNT
  • Printer type Mobile printer
  • Warranty 24 months
  • Connectivity ports Dual USB Panel Install Charger with bare wires, cable length 200 mm - USB-C / -CThis universal unit charges all mobil devices like Smartphones, Headphones or mobile Loudspeakers.Features:With USB-C® connection for fast and simple charging.Charges 25 % faster than previous model with 2 x 18 W.Simple to install and compatibel with switch programs from Berker and Inprojal.Suitable for wall thickness up to 17 mm.bare wires - 200 mm cable length.Techical Data:Output - 2x 30 WPower in Stand-by-Mode - ? 2 mAInput rated voltage - 12?24 VMeasures - 36 mm front diameter, Tablets und other USB devicesStandards - CE, UL 94 V-0)Connection and Fast Charging Technology:USB-C®Total output per port with 12 V input voltage - 5
