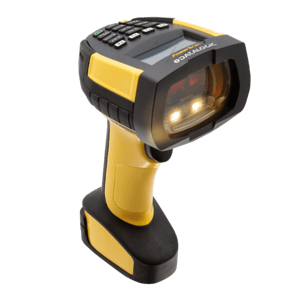

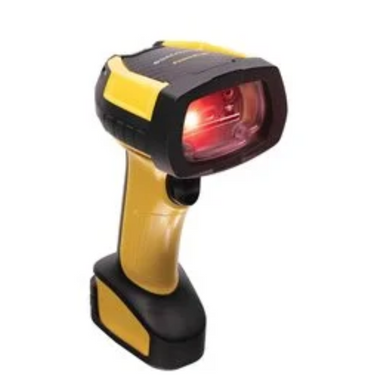

Datalogic PowerScan PM9600

Datalogic PowerScan PM9600 is a handheld 1D and 2D barcode scanner designed for demanding industrial environments such as logistics, warehouses, production, and distribution. It stands out for its durability, high scanning performance, long-range wireless connectivity, and ergonomics optimized for intensive use.

Datalogic PM9600 Features

Durability and Robustness

IP65 and IP67 certified, resistant to dust, water, impacts, and electrostatic discharges.

Can withstand drops from up to 2.5 meters onto concrete.

Trigger tested for more than 10 million activations.

1D and 2D Barcode Scanning

High-resolution image sensor (1280×800 px).

Reads 1D and 2D codes, including QR, Data Matrix, PDF417, Aztec, among others.

High accuracy when reading damaged or poorly printed codes.

Scanning Modes

High Performance (HP): Reads 1D codes from 2.5 mil and 2D codes from 4 mil.

Standard Range (SR): 1D from 3 mil and 2D from 6 mil.

Capable of operating under direct sunlight (up to 100,000 lux).

Wireless Connectivity

STAR Cordless System™ technology (433 MHz or 910 MHz frequencies).

Wireless range up to 230 meters.

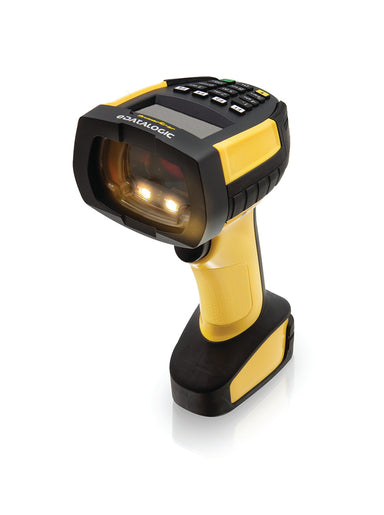

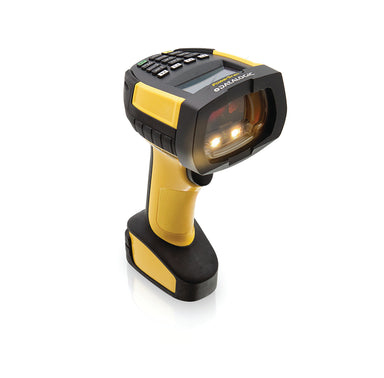

Versions with OLED display and 16-key keypad for enhanced interaction.

High-Performance Battery

Removable lithium-ion battery (3,350 mAh).

Up to 80,000 scans per charge.

Charging time: approximately 3.2 hours.

User Feedback

Reading confirmation via:

LED light (Green Spot / 3GL™)

Vibration

Acoustic signal (buzzer)

Ergonomic, balanced, and comfortable design for extended use.

Recommended Applications

• Warehouses and distribution centers
• Industrial manufacturing environments
• Logistics and product traceability
• Inventory control
• Asset management and work orders

For more information about the Datalogic PowerScan PM9600 barcode scanner, contact our sales team.
